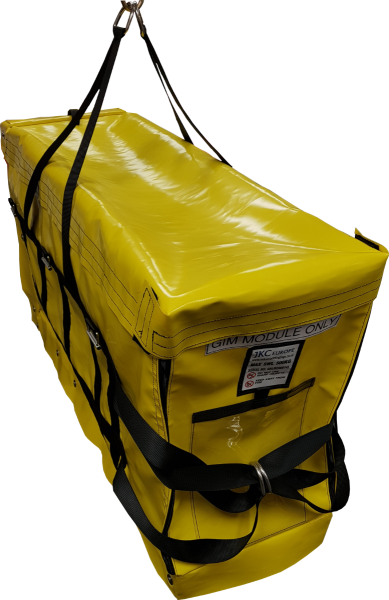

Load Rated Lifting bag MWLB 1230 External Tray Lid
SKU
MWLB 1230
Quote only
- L1280mm x W380mm x H750mm SWL 500kg
- Horizontal & Vertical Lifting Bag
- Velcro Lid Closure
- External Tray
- Removable Internal Walls
If you require any other extras, please get in touch with us through our email.
MWLB 1230 is designed to be lifted horizontally and vertically, making it possible to manoeuvre the lifting bag through narrow hatches.
HDPE external tray has been attached to both the horizontal base and vertical base to improve the bag's longevity.
The images shown are for reference only.
If you are interested in this design but require different dimensions, please contact us via email.
As our bags are made to order, the preorder status means we will process the order once payment is received.
The lead time for small orders is 3-5 working days, anything more than that can take longer.
Company logo or labelling available at a small fee. Please get in touch with us via email to find out more.
HDPE external tray has been attached to both the horizontal base and vertical base to improve the bag's longevity.
- 2 Way Lifting
- 4 x Stainless Steel Delta Rings rated at A4-Grade
- 2 x HDPE inserts to keep the shape of the bag
- 2 x External trays on horizontal and vertical base
- 6 x Secure slings (3 External & 3 Internal)
- Lid with Velcro closure
- Full side opening with zip
The images shown are for reference only.
If you are interested in this design but require different dimensions, please contact us via email.
As our bags are made to order, the preorder status means we will process the order once payment is received.
The lead time for small orders is 3-5 working days, anything more than that can take longer.
Company logo or labelling available at a small fee. Please get in touch with us via email to find out more.
| Fabric | Single skin |
|---|---|
| Base protection | External Tray |
| Bag type | Load Rated |
| Base Shape | Square |
| Closure | Velcro Lid |
| Length (mm) | 1280 |
| Width (mm) | 380 |
| Height (mm) | 750 |
| Safe Working Load (KG) | 500 |
| Additional features | A4 Clear Document Pocket |
| Handles | No Handles |
All of our lifting bags comply with the requirements of the Provision and Use of Work Equipment Regulations 1998 (PUWER). Our CE models have integrated sling systems which conforms with the standard EN-1492-1. For more information, please contact support@industrialliftingbags.co.uk
All materials used are sourced from trusted third party suppliers. Only materials of the highest quality are used in our products.
Fabric – All our bags are made with Super Strong 900 g/m2 PVC coated fabric with two-side lacquered. Often used as truck curtains, retention basins and anti-pollution barriers.
The PVC coating uses Lowick System which help considerably reduce micro-organism penetration into the heart of the coated fabric. In addition, the Cleangard® lacquer greatly increases durability and makes fabric All-weather resistant and easy to maintain.
This fabric has an extreme tensile strength of 400/400 DaN and can operate in -30°c to +70°c environments, perfect for lifting heavy loads in various conditions.
Webbing Sling – Strong Weave Polyester webbing is used for it’s very high strength tenacity, good chemical and abrasion resistance nature, it is also difficult to ignite and burns slowly. In addition, it has excellent UV protection and does not absorb water, giving it high resistance to rot and mildew. It has a breaking strength of up to 4.5 tonnes, along with elongation properties – lengthening up to 25% at breaking point.
D-rings – A4 grade Stainless Steel 50mm D-rings are used as lifting points. With 8mm diameter thickness, these d-rings are extremely strong. It was tested to destruction with a load of 7 tonnes. The D-rings we use in particular has the joint welded together making it almost impossible to see. This helps further improve strength and durability.
HDPE – All of our protective trays or reinforced flooring uses High Density Polyethylene Plastic. It has a high strength-to-density ratio, low friction, outstanding wear resistance, along with corrosion and abrasion resistance properties. HDPE stays strong whilst offering flexibility, reducing the risk of breakage.
Please contact us directly for a detail list of all materials used along with technical files.
All materials used are sourced from trusted third party suppliers. Only materials of the highest quality are used in our products.
Fabric – All our bags are made with Super Strong 900 g/m2 PVC coated fabric with two-side lacquered. Often used as truck curtains, retention basins and anti-pollution barriers.
The PVC coating uses Lowick System which help considerably reduce micro-organism penetration into the heart of the coated fabric. In addition, the Cleangard® lacquer greatly increases durability and makes fabric All-weather resistant and easy to maintain.
This fabric has an extreme tensile strength of 400/400 DaN and can operate in -30°c to +70°c environments, perfect for lifting heavy loads in various conditions.
Webbing Sling – Strong Weave Polyester webbing is used for it’s very high strength tenacity, good chemical and abrasion resistance nature, it is also difficult to ignite and burns slowly. In addition, it has excellent UV protection and does not absorb water, giving it high resistance to rot and mildew. It has a breaking strength of up to 4.5 tonnes, along with elongation properties – lengthening up to 25% at breaking point.
D-rings – A4 grade Stainless Steel 50mm D-rings are used as lifting points. With 8mm diameter thickness, these d-rings are extremely strong. It was tested to destruction with a load of 7 tonnes. The D-rings we use in particular has the joint welded together making it almost impossible to see. This helps further improve strength and durability.
HDPE – All of our protective trays or reinforced flooring uses High Density Polyethylene Plastic. It has a high strength-to-density ratio, low friction, outstanding wear resistance, along with corrosion and abrasion resistance properties. HDPE stays strong whilst offering flexibility, reducing the risk of breakage.
Please contact us directly for a detail list of all materials used along with technical files.
