Load Rated Lifting bag IBCB 1300 External Tray Open
SKU
IBCB 1300
Quote only
- L1300mm x W1100mm x H1200mm SWL 1500kg
- Open Top Lifting Bag
- External Tray
If you require any other extras, please get in touch with us through our email.
Categories: Load Rated Lifting Bags, Square Lifting Bags, Lifting Bags

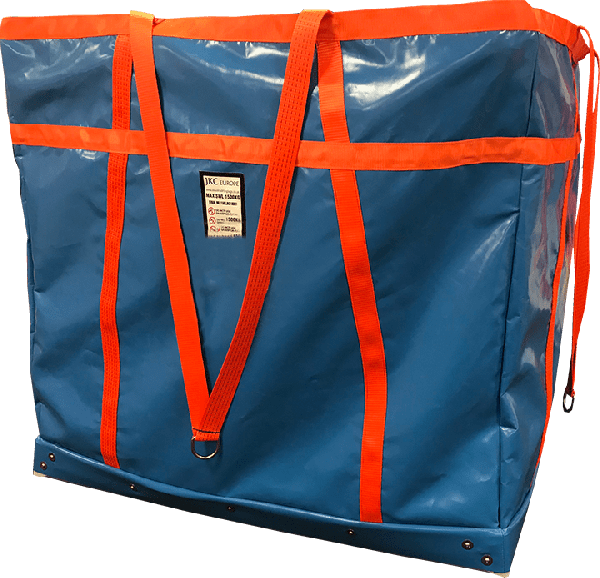

IBCB 1300 was designed to lift IBC Containers using a crucifix lifting beam. Each sling is the same length for perfect weight distribution whilst it is attached to the 4 attachment points on the crucifix lifting beam.
Please let us know if you will be using 1 x lifting point only, and we can adjust the sling's length to suit your requirements.
Please note: Cruciform beam is not included.
The images shown are for reference only.
Suitable Base Option for this model includes:
If you require additional base options, please choose your requirements in the options above. Feel free to select more than one base protection option - If we cannot fulfil your requirement, we will let you know.
As our bags are made to order, the preorder status means we will process the order once payment is received.
The lead time for small orders is 3-5 working days, anything more than that can take longer.
Company logo or labelling available at a small fee. Please get in touch with us via email to find out more.
Please let us know if you will be using 1 x lifting point only, and we can adjust the sling's length to suit your requirements.
- 4 x Stainless Steel Delta Rings rated at A4-Grade
- 4 x Lifting Slings are manufactured to be the same length to suit a crucifix lifting beam.
Please note: Cruciform beam is not included.
The images shown are for reference only.
Suitable Base Option for this model includes:
- No Additional Protection - Great if the bag needs to be more flexible, if protection is not necessary this is the best choice to keep costs low
- External Tray - Protects the bag's exterior, which means the bag can be dragged. Great for durability and stability
- Internal Tray - The internal tray helps to protect the bag from its contents (e.g. sharp corners etc)
- 6mm Internal Flooring - Creates an even surface, great for stability and weight distribution
- Double Fabric Base - Cheaper Alternative to HDPE trays for extra wear.
If you require additional base options, please choose your requirements in the options above. Feel free to select more than one base protection option - If we cannot fulfil your requirement, we will let you know.
As our bags are made to order, the preorder status means we will process the order once payment is received.
The lead time for small orders is 3-5 working days, anything more than that can take longer.
Company logo or labelling available at a small fee. Please get in touch with us via email to find out more.
| Fabric | Single skin |
|---|---|
| Base protection | External Tray |
| Bag type | Load Rated |
| Base Shape | Square |
| Closure | Open |
| Length (mm) | 1300 |
| Width (mm) | 1100 |
| Height (mm) | 1200 |
| Safe Working Load (KG) | 1500 |
| Additional features | A4 Clear Document Pocket |
| Handles | No Handles |
All of our lifting bags comply with the requirements of the Provision and Use of Work Equipment Regulations 1998 (PUWER). Our CE models have integrated sling systems which conforms with the standard EN-1492-1. For more information, please contact support@industrialliftingbags.co.uk
All materials used are sourced from trusted third party suppliers. Only materials of the highest quality are used in our products.
Fabric – All our bags are made with Super Strong 900 g/m2 PVC coated fabric with two-side lacquered. Often used as truck curtains, retention basins and anti-pollution barriers.
The PVC coating uses Lowick System which help considerably reduce micro-organism penetration into the heart of the coated fabric. In addition, the Cleangard® lacquer greatly increases durability and makes fabric All-weather resistant and easy to maintain.
This fabric has an extreme tensile strength of 400/400 DaN and can operate in -30°c to +70°c environments, perfect for lifting heavy loads in various conditions.
Webbing Sling – Strong Weave Polyester webbing is used for it’s very high strength tenacity, good chemical and abrasion resistance nature, it is also difficult to ignite and burns slowly. In addition, it has excellent UV protection and does not absorb water, giving it high resistance to rot and mildew. It has a breaking strength of up to 4.5 tonnes, along with elongation properties – lengthening up to 25% at breaking point.
D-rings – A4 grade Stainless Steel 50mm D-rings are used as lifting points. With 8mm diameter thickness, these d-rings are extremely strong. It was tested to destruction with a load of 7 tonnes. The D-rings we use in particular has the joint welded together making it almost impossible to see. This helps further improve strength and durability.
HDPE – All of our protective trays or reinforced flooring uses High Density Polyethylene Plastic. It has a high strength-to-density ratio, low friction, outstanding wear resistance, along with corrosion and abrasion resistance properties. HDPE stays strong whilst offering flexibility, reducing the risk of breakage.
Please contact us directly for a detail list of all materials used along with technical files.
All materials used are sourced from trusted third party suppliers. Only materials of the highest quality are used in our products.
Fabric – All our bags are made with Super Strong 900 g/m2 PVC coated fabric with two-side lacquered. Often used as truck curtains, retention basins and anti-pollution barriers.
The PVC coating uses Lowick System which help considerably reduce micro-organism penetration into the heart of the coated fabric. In addition, the Cleangard® lacquer greatly increases durability and makes fabric All-weather resistant and easy to maintain.
This fabric has an extreme tensile strength of 400/400 DaN and can operate in -30°c to +70°c environments, perfect for lifting heavy loads in various conditions.
Webbing Sling – Strong Weave Polyester webbing is used for it’s very high strength tenacity, good chemical and abrasion resistance nature, it is also difficult to ignite and burns slowly. In addition, it has excellent UV protection and does not absorb water, giving it high resistance to rot and mildew. It has a breaking strength of up to 4.5 tonnes, along with elongation properties – lengthening up to 25% at breaking point.
D-rings – A4 grade Stainless Steel 50mm D-rings are used as lifting points. With 8mm diameter thickness, these d-rings are extremely strong. It was tested to destruction with a load of 7 tonnes. The D-rings we use in particular has the joint welded together making it almost impossible to see. This helps further improve strength and durability.
HDPE – All of our protective trays or reinforced flooring uses High Density Polyethylene Plastic. It has a high strength-to-density ratio, low friction, outstanding wear resistance, along with corrosion and abrasion resistance properties. HDPE stays strong whilst offering flexibility, reducing the risk of breakage.
Please contact us directly for a detail list of all materials used along with technical files.
